Dismantling Joint
A Dismantling Joint is a critical pipeline component designed to simplify the installation, removal, and maintenance of valves, pumps, and other flanged equipment. It provides axial adjustment and flexibility, allowing precise alignment between pipe sections while maintaining a secure, leak-tight connection. Commonly used in water, wastewater, oil, and industrial piping systems, dismantling joints reduce downtime, ease maintenance operations, and help absorb minor movement or misalignment within the pipeline.
Applications
- Suitable for pipeline systems with flanges on both sides
- Used where installation length adjustment is required during fitting
- Ideal for pipelines requiring easy alignment of flanged equipment
- Allows diagonal tightening of pressure cap bolts for uniform load distribution
- Facilitates quick installation, dismantling, and repair of valves and equipment
- Can be adjusted according to site conditions and available space
Features:
- Adjustable installation length
- Flanged ends on both sides
- Easy installation and dismantling
- Allows axial movement
- Uniform bolt tightening

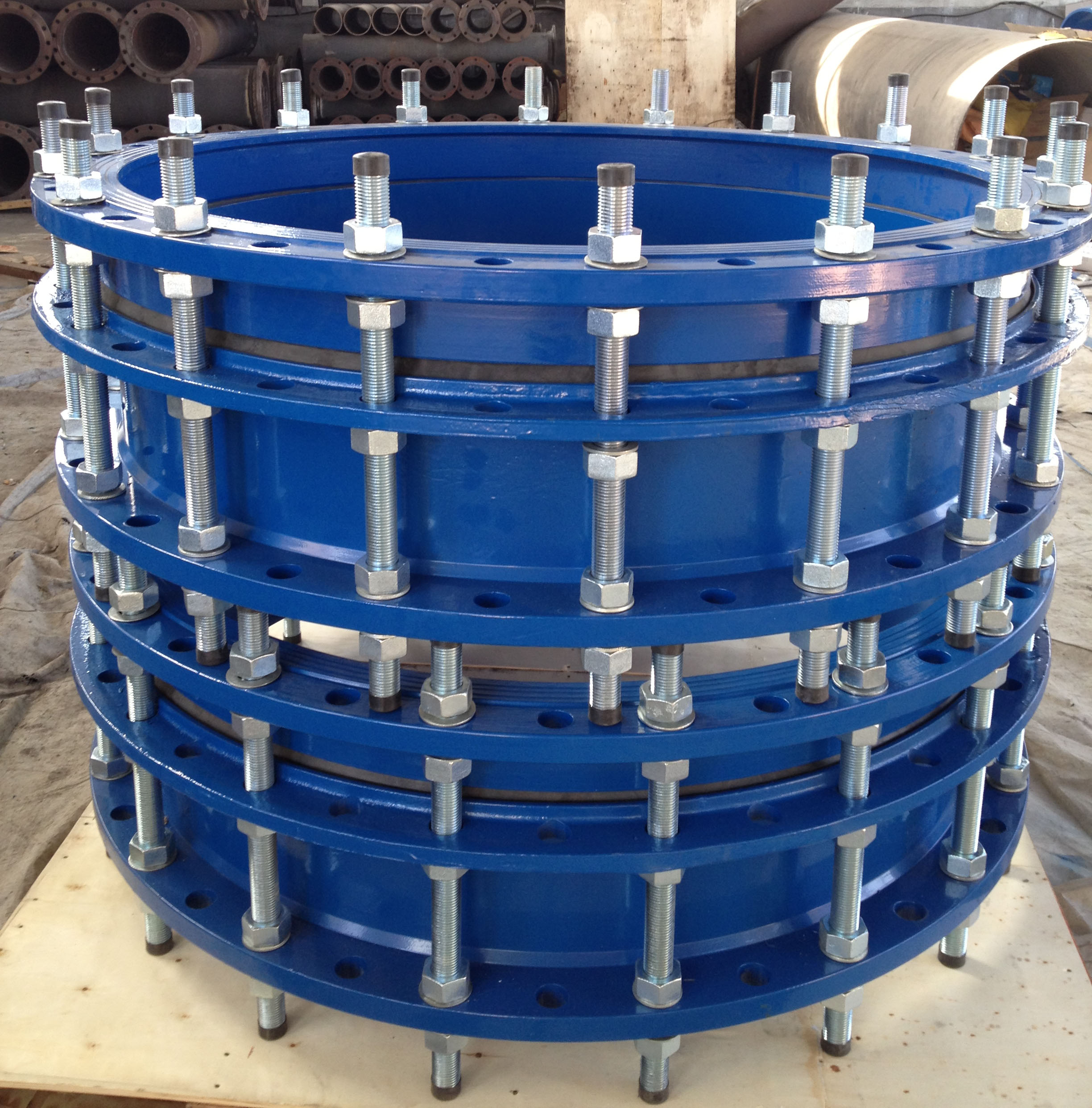

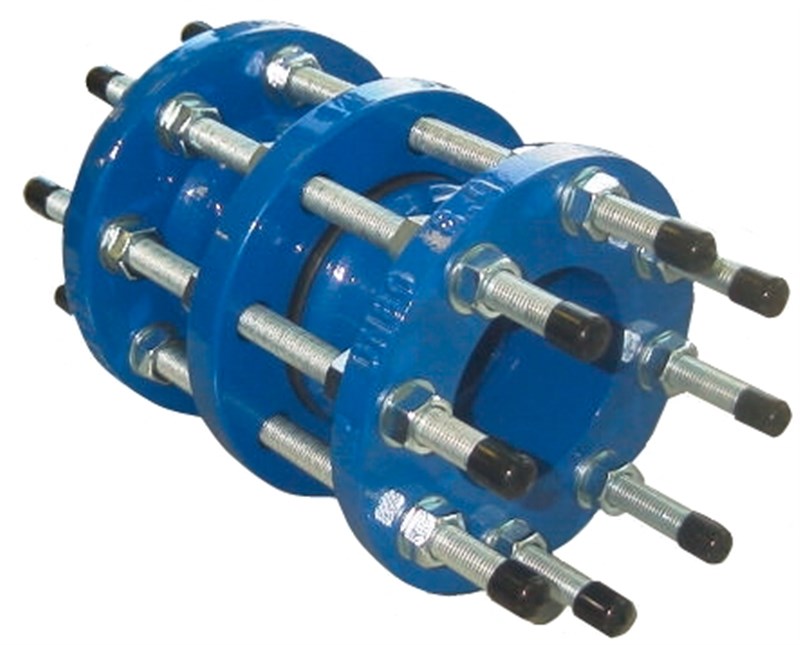

Gallery
Main Connection Dimensions
| DN | External Diameter (mm) | Shape Dimension (mm) | Flange Connection Size | ||||
|---|---|---|---|---|---|---|---|
| L | L1 | D | D1 | N-TH | B | ||
| 65 | 76 | 200 | 40 | 185 | 145 | 4-M16 | 120 |
| 80 | 89 | 200 | 160 | – | – | 8-M16 | 22 |
| 100 | 114 | 220 | 180 | – | – | – | 24 |
| 125 | 140 | 250 | 210 | – | – | – | 26 |
| 150 | 168 | 285 | 240 | – | – | 8-M20 | 26 |
| 200 | 219 | 340 | 295 | – | – | – | 28 |
| 250 | 273 | 395 | 350 | – | – | 12-M20 | 28 |
| 300 | 325 | 220 | 50 | 445 | 400 | 12-M20 | 28 |
| 350 | 377 | 505 | 460 | – | – | 16-M20 | 30 |
| 400 | 426 | 565 | 515 | – | – | 16-M24 | 32 |
| 450 | 480 | 615 | 565 | – | – | 20-M24 | 32 |
| 500 | 530 | 670 | 620 | – | – | 20-M24 | – |

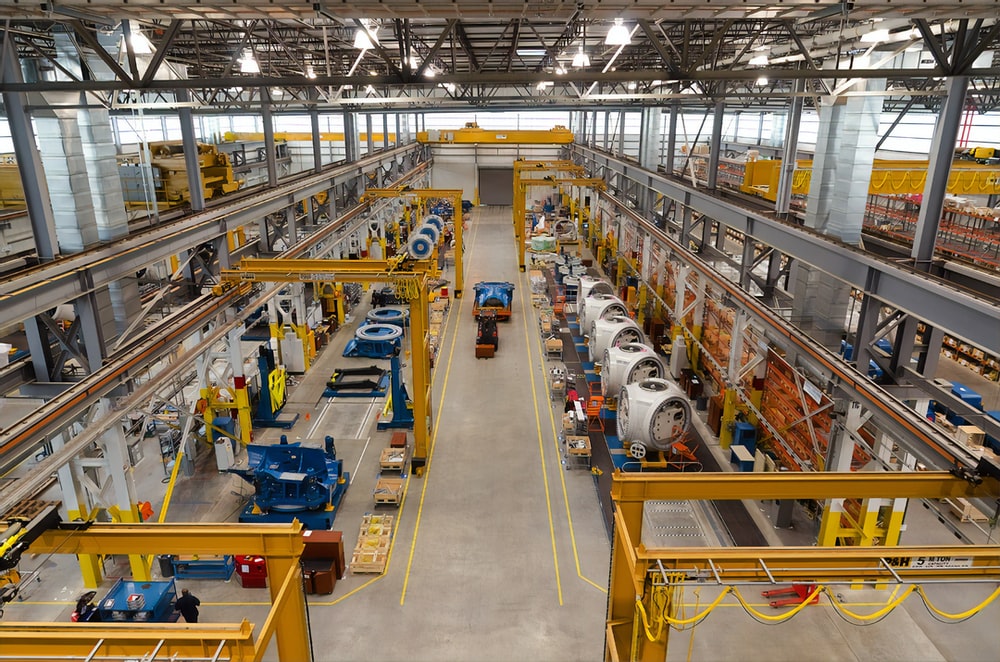

Our Production Factory
Our state-of-the-art production facility is equipped with advanced machinery and precision tools to manufacture high-quality metal expansion joints and pipe fittings. Every stage, from forming bellows to final inspection, follows strict quality control standards to ensure reliability, durability, and compliance with ISO certifications.
